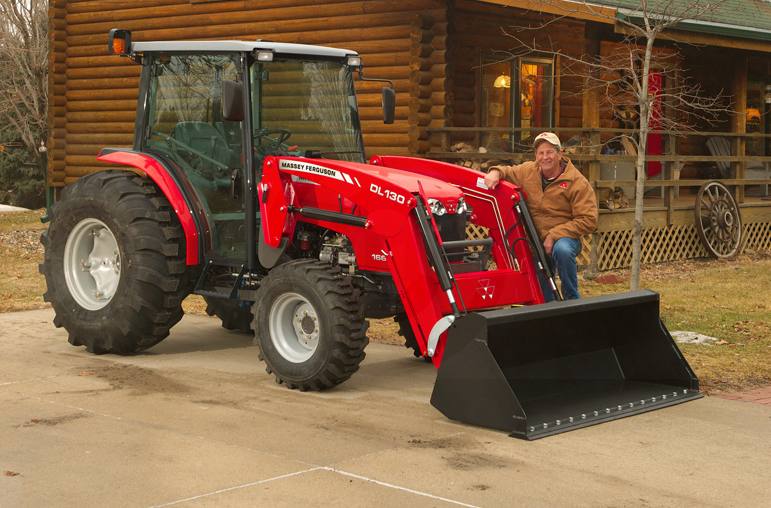

2010 Massey Ferguson MF1660 4WD Platform/Cab Compact Tractor
Request a Quote Financing Calculator Request a Brochure Financing Form

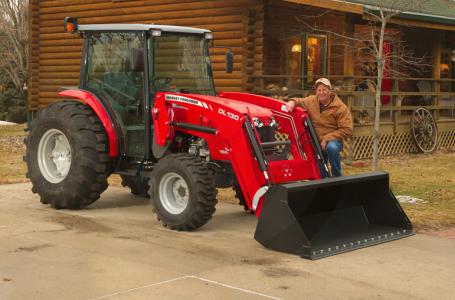

Click here to view full image.
Request a Quote Financing Calculator Request a Brochure Financing Form
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview

 Print Brochure

    Engine
    • Gross engine: 60 hp (44.7 kW)
    • PTO HP: 46.4 hp (34.5 kW)
    • Rated engine speed: 2,500 RPM
    • Type: 4-cylinder diesel
    • Displacement: 180.4 cu. in. (2.9 l)
    • Cooling system: Liquid cooled
    • Fuel tank capacity: 13.2 gal. (50 l)
    Transmission Options
    • PowerShuttle: 12Fx12R (cab only)
    • DynaQPS™ w/PowerShuttle: 12Fx12R (cab only)
    • Rear brakes: Wet disc
    PTO
    • Rear PTO type: Ind. 540 RPM
    • Control: Electro-hydraulic
    Hydraulics
    • Type of system: Open center
    • Flow at remotes: 12.5 gpm (47.3 lpm)
    • Pwr steering flow: SS: 5.2 gpm (19.7 lpm), HST/PS: 6.4 gpm (24.2 lpm)
    • Total flow: Platform: 17.7 gpm (67.2 lpm), Cab: 18.9 gpm (71.7 lpm)
    • Factory-installed joystick: Std
    • Rear auxiliary remotes: 3 spool opt.
    3-Point Hitch
    • ASAE hitch: Cat. I
    • Controls: Position
    • Rate of drop control: Standard
    • Lift capacity @ hitch point: 3483 lbs. (1,580 kg)
    • Type of stabilizers: Telescopic bar
    • Type of link ends: Telescopic
    Operator Area
    • Platform type: Flat isolated
    • ROPS: Folding
    • Seat type: Suspended
    • Seat belt type: Retractable
    • Hood type: One-piece flip up
    Dimensions with ag tires
    • Overall length: 134.6 in. (3,420 mm)
    • Min. overall width: 70.9 in. (1810 mm)
    • Max. height over ROPS: Platform: 104.1 in. (2645 mm), Cab: 91.9 in. (2315 mm)
    • Ground clearance: 15.7 in. (400 mm)
    • Wheelbase: 78.7 in. (2000 mm)
    • Shipping weight: Platform: 4079 lbs. (1800 kg); Cab: 4453 lbs. (2020 kg)
    Available Implements
    • Loaders
    • Backhoes
    • Landscape Rakes
    • Box Blades
    • Grader Blades
    • Post Hole Digger
    • Mid-Mount Mowers
    • Rear-Mount Mowers
    • Turf Flex Finish Mower
    • Rotary Cutters
    • Rotary Flex Cutters
    • Rotary Tillers
    • Dozer Blade
    • Snow Blower
    • Rotary Broom

    Specifications

    Engine
    Engine Manufacturer Iseki
    Engine Type Type: 4-cylinder diesel; Displacement: 180.4 cu. in. (2.9 l); Cooling system: Liquid cooled
    Horsepower 60 hp (44.7 kW)
    PTO HP 46.4 hp (34.5 kW)
    Rated RPM 2,500 RPM
    Specifications
    Wheelbase 78.7 in. (2000 mm)
    Height Platform: 104.1 in. (2645 mm), Cab: 91.9 in. (2315 mm)
    Width 70.9 in. (1810 mm)
    Weight Platform: 4079 lbs. (1800 kg); Cab: 4453 lbs. (2020 kg)
    Ground Clearance 15.7 in. (400 mm)
    General
    Fuel Capacity 13.2 gal. (50 l)
    Transmission PowerShuttle: 12Fx12R (cab only); DynaQPS™ w/PowerShuttle: 12Fx12R (cab only)
    Brakes Wet disc
    Hydraulics Open center

    Compare Models

    		 Print








    Year 2010
    Manufacturer Massey Ferguson
    Model MF1660 4WD Platform/Cab Compact Tractor
    Style Compact
    Engine
    Engine Manufacturer Iseki
    Engine Type Type: 4-cylinder diesel; Displacement: 180.4 cu. in. (2.9 l); Cooling system: Liquid cooled
    Horsepower 60 hp (44.7 kW)
    PTO HP 46.4 hp (34.5 kW)
    Rated RPM 2,500 RPM
    Bore and Stroke
    General
    Fuel System
    Fuel Capacity 13.2 gal. (50 l)
    Transmission PowerShuttle: 12Fx12R (cab only); DynaQPS™ w/PowerShuttle: 12Fx12R (cab only)
    Brakes Wet disc
    Hydraulics Open center
    Drive Type
    Specifications
    Wheelbase 78.7 in. (2000 mm)
    Height Platform: 104.1 in. (2645 mm), Cab: 91.9 in. (2315 mm)
    Width 70.9 in. (1810 mm)
    Weight Platform: 4079 lbs. (1800 kg); Cab: 4453 lbs. (2020 kg)
    Ground Clearance 15.7 in. (400 mm)
    Tire Size
