2010 Massey Ferguson MF1655 4WD Platform/Cab Compact Tractor
Request a Quote Financing Calculator Request a Brochure Financing Form

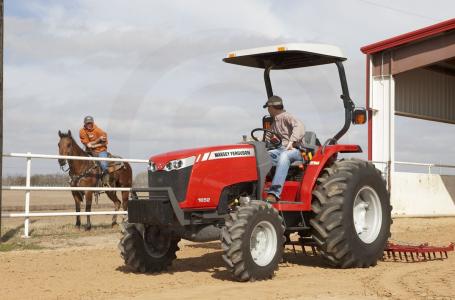

Click here to view full image.

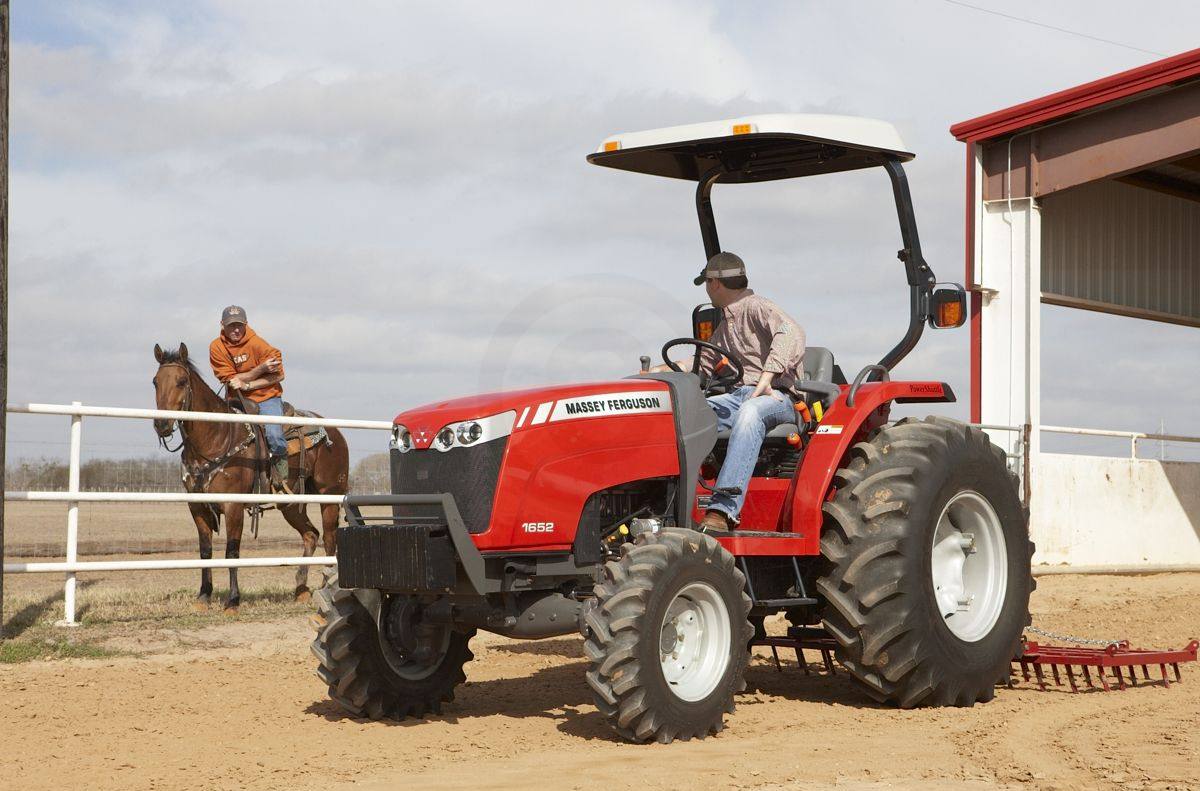

1652 Shown
Request a Quote Financing Calculator Request a Brochure Financing Form
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview

 Print Brochure

    Engine
    • Gross engine: 55.4 hp (41.3 kW)
    • PTO HP: 43 hp (32.1 kW)
    • Rated engine speed: 2,500 RPM
    • Type: 4-cylinder diesel
    • Displacement: 180.4 cu. in. (2.9 l)
    • Cooling system: Liquid cooled
    • Fuel tank capacity: 13.2 gal. (50 l)
    Transmission Options
    • SynchroShuttle: 8Fx8R (Platform Only)
    • PowerShuttle: 12Fx12R (cab only)
    • Rear brakes: Wet disc
    PTO
    • Rear PTO type: Ind. 540 RPM
    • Control: Electro-hydraulic
    Hydraulics
    • Type of system: Open center
    • Flow at remotes: 12.5 gpm (47.5 lpm)
    • Pwr steering flow: SS: 5.2 gpm (19.7 lpm), HST/PS: 6.4 gpm (24.2 lpm)
    • Total flow: Platform: 17.7 gpm (67.2 lpm), Cab: 18.9 gpm (71.7 lpm)
    • Factory-installed joystick: Std
    • Rear auxiliary remotes: 3 spool opt.
    3-Point Hitch
    • ASAE hitch: Cat. I
    • Controls: Position
    • Rate of drop control: Standard
    • Lift capacity @ hitch point: 3483 lbs. (1,580 kg)
    • Type of stabilizers: Telescopic bar
    • Type of link ends: Telescopic
    Operator Area
    • Platform type: Flat isolated
    • ROPS: Folding
    • Seat type: Suspended
    • Seat belt type: Retractable
    • Hood type: One-piece flip up
    Dimensions with ag tires
    • Overall length: 132.7 in. (3,370 mm)
    • Min. overall width: 67.3 in. (1710 mm)
    • Max. height over ROPS: Platform: 103.1 in. (2620 mm), Cab: 90.2 in. (2290 mm)
    • Ground clearance: 14.8 in. (375 mm)
    • Wheelbase: 76 in. (1930 mm)
    • Shipping weight: Platform: 3770 lbs. (1710 kg); Cab: 4100 lbs. (1860 kg)
    Optional Implements
    • Loaders
    • Backhoes
    • Landscape Rakes
    • Box Blades
    • Grader Blades
    • Post Hole Digger
    • Mid-Mount Mowers
    • Rear-Mount Mowers
    • Turf Flex Finish Mower
    • Rotary Cutters
    • Rotary Flex Cutters
    • Rotary Tillers
    • Dozer Blade
    • Snow Blower
    • Rotary Broom

    Specifications

    Engine
    Engine Manufacturer Iseki
    Engine Type Type: 4-cylinder diesel; Displacement: 180.4 cu. in. (2.9 l); Cooling system: Liquid cooled
    Horsepower 55.4 hp (41.3 kW)
    PTO HP 43 hp (32.1 kW)
    Rated RPM 2,500 RPM
    Specifications
    Wheelbase 76 in. (1930 mm)
    Height Platform: 103.1 in. (2620 mm), Cab: 90.2 in. (2290 mm)
    Width 67.3 in. (1710 mm)
    Weight Platform: 3770 lbs. (1710 kg); Cab: 4100 lbs. (1860 kg)
    Ground Clearance 14.8 in. (375 mm)
    General
    Fuel Capacity 13.2 gal. (50 l)
    Transmission SynchroShuttle: 8Fx8R (Platform Only); PowerShuttle: 12Fx12R (cab only)
    Brakes Wet disc
    Hydraulics Open center

    Compare Models

    		 Print








    Year 2010
    Manufacturer Massey Ferguson
    Model MF1655 4WD Platform/Cab Compact Tractor
    Style Compact
    Engine
    Engine Manufacturer Iseki
    Engine Type Type: 4-cylinder diesel; Displacement: 180.4 cu. in. (2.9 l); Cooling system: Liquid cooled
    Horsepower 55.4 hp (41.3 kW)
    PTO HP 43 hp (32.1 kW)
    Rated RPM 2,500 RPM
    Bore and Stroke
    General
    Fuel System
    Fuel Capacity 13.2 gal. (50 l)
    Transmission SynchroShuttle: 8Fx8R (Platform Only); PowerShuttle: 12Fx12R (cab only)
    Brakes Wet disc
    Hydraulics Open center
    Drive Type
    Specifications
    Wheelbase 76 in. (1930 mm)
    Height Platform: 103.1 in. (2620 mm), Cab: 90.2 in. (2290 mm)
    Width 67.3 in. (1710 mm)
    Weight Platform: 3770 lbs. (1710 kg); Cab: 4100 lbs. (1860 kg)
    Ground Clearance 14.8 in. (375 mm)
    Tire Size
