2010 Massey Ferguson MF1635 4WD Platform/Cab Compact Tractor
Request a Quote Financing Calculator Request a Brochure Financing Form
Request a Quote Financing Calculator Request a Brochure Financing Form
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview

 Print Brochure

    Engine
    • Gross engine: 35.7 hp (26.6 kW)
    • PTO HP: Gear: 27.1 hp (20.2 kW); HST: 25.8 hp (19.2 kW)
    • Rated engine speed: 2,600 RPM
    • Type: 3-cylinder diesel
    • Displacement: 100.5 cu. in. (1.6 l)
    • Cooling system: Liquid cooled
    • Fuel tank capacity: Platform: 9.2 gal. (35 l); Cab: 10.5 gal. (40 l)
    Transmission
    • PowerShuttle: 12Fx12R
    • Hydrostatic w/cruise: 3 range
    • Rear brakes: Wet disc
    PTO
    • Rear PTO type: Ind. 540 RPM
    • Control: Electro-hydraulic
    • Mid PTO type: 2,000 RPM (opt.)
    Hydraulics
    • Type of system: Open center
    • Flow at remotes: 11.6 gpm (43.9 lpm)
    • Pwr steering flow: SS: 4.9 gpm (18.5 lpm), HST/PS: 6 gpm (22.7 lpm)
    • Total flow: Platform: 16.5 gpm (62.3 lpm), Cab: 17.6 gpm (66.5 lpm)
    • Factory-installed joystick: Std
    • Rear auxiliary remotes: 3 spool opt.
    3-Point Hitch
    • ASAE hitch: Cat. I
    • Controls: Position
    • Rate of drop control: Standard
    • Lift capacity @ hitch point: 2,800 lbs. (1,270 kg)
    • Type of stabilizers: Telescopic bar
    • Type of link ends: Telescopic
    Operator Area
    • Platform type: Flat isolated
    • ROPS: Folding
    • Seat type: Suspended
    • Seat belt type: Retractable
    • Hood type: One-piece flip up
    Dimensions with ag tires
    • Overall length: 122 in. (3,100 mm)
    • Min. overall width: 64.5 in. (1640 mm)
    • Max. height over ROPS: Platform: 100 in. (2540 mm), Cab: 86.6 in. (2200 mm)
    • Ground clearance: 14.2 in. (360 mm)
    • Wheelbase: 69.7 in. (1,770 mm)
    • Shipping weight: Platform: 3175 lbs. (1440 kg); Cab: 3527 lbs. (1600 kg)
    Optional Implements
    • Loaders
    • Backhoes
    • Landscape Rakes
    • Box Blades
    • Grader Blades
    • Post Hole Digger
    • Mid-Mount Mowers
    • Rear-Mount Mowers
    • Turf Flex Finish Mower
    • Rotary Cutters
    • Rotary Flex Cutters
    • Rotary Tillers
    • Dozer Blade

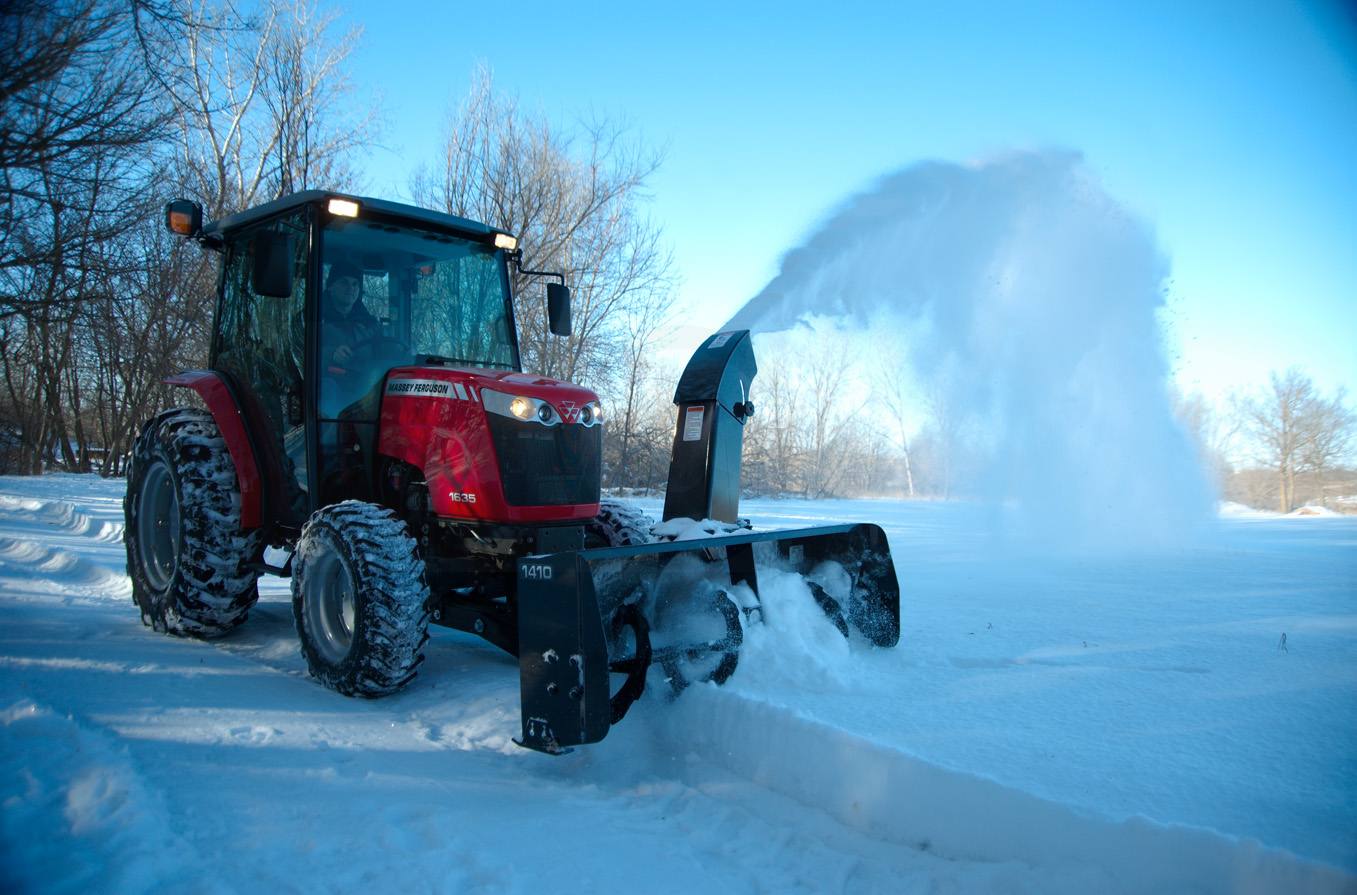

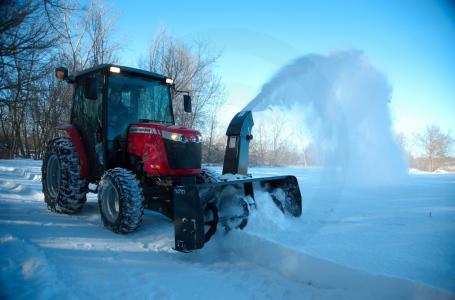

    • Snow Blower
    • Rotary Broom

    Specifications

    Engine
    Engine Manufacturer Iseki
    Engine Type Type: 3-cylinder diesel ; Displacement: 100.5 cu. in. (1.6 l) ; Cooling system: Liquid cooled
    Horsepower 35.7 hp (26.6 kW)
    PTO HP Gear: 27.1 hp (20.2 kW); HST: 25.8 hp (19.2 kW)
    Rated RPM 2,600 RPM
    Specifications
    Wheelbase 69.7 in. (1,770 mm)
    Height Platform: 100 in. (2540 mm), Cab: 86.6 in. (2200 mm)
    Width 64.5 in. (1640 mm)
    Weight Platform: 3175 lbs. (1440 kg); Cab: 3527 lbs. (1600 kg)
    Ground Clearance 14.2 in. (360 mm)
    General
    Fuel Capacity Platform: 9.2 gal. (35 l); Cab: 10.5 gal. (40 l)
    Transmission PowerShuttle: 12Fx12R ; Hydrostatic w/cruise: 3 range
    Brakes Wet disc
    Hydraulics Open center

    Compare Models

    		 Print








    Year 2010
    Manufacturer Massey Ferguson
    Model MF1635 4WD Platform/Cab Compact Tractor
    Style Compact
    Engine
    Engine Manufacturer Iseki
    Engine Type Type: 3-cylinder diesel ; Displacement: 100.5 cu. in. (1.6 l) ; Cooling system: Liquid cooled
    Horsepower 35.7 hp (26.6 kW)
    PTO HP Gear: 27.1 hp (20.2 kW); HST: 25.8 hp (19.2 kW)
    Rated RPM 2,600 RPM
    Bore and Stroke
    General
    Fuel System
    Fuel Capacity Platform: 9.2 gal. (35 l); Cab: 10.5 gal. (40 l)
    Transmission PowerShuttle: 12Fx12R ; Hydrostatic w/cruise: 3 range
    Brakes Wet disc
    Hydraulics Open center
    Drive Type
    Specifications
    Wheelbase 69.7 in. (1,770 mm)
    Height Platform: 100 in. (2540 mm), Cab: 86.6 in. (2200 mm)
    Width 64.5 in. (1640 mm)
    Weight Platform: 3175 lbs. (1440 kg); Cab: 3527 lbs. (1600 kg)
    Ground Clearance 14.2 in. (360 mm)
    Tire Size
